Description

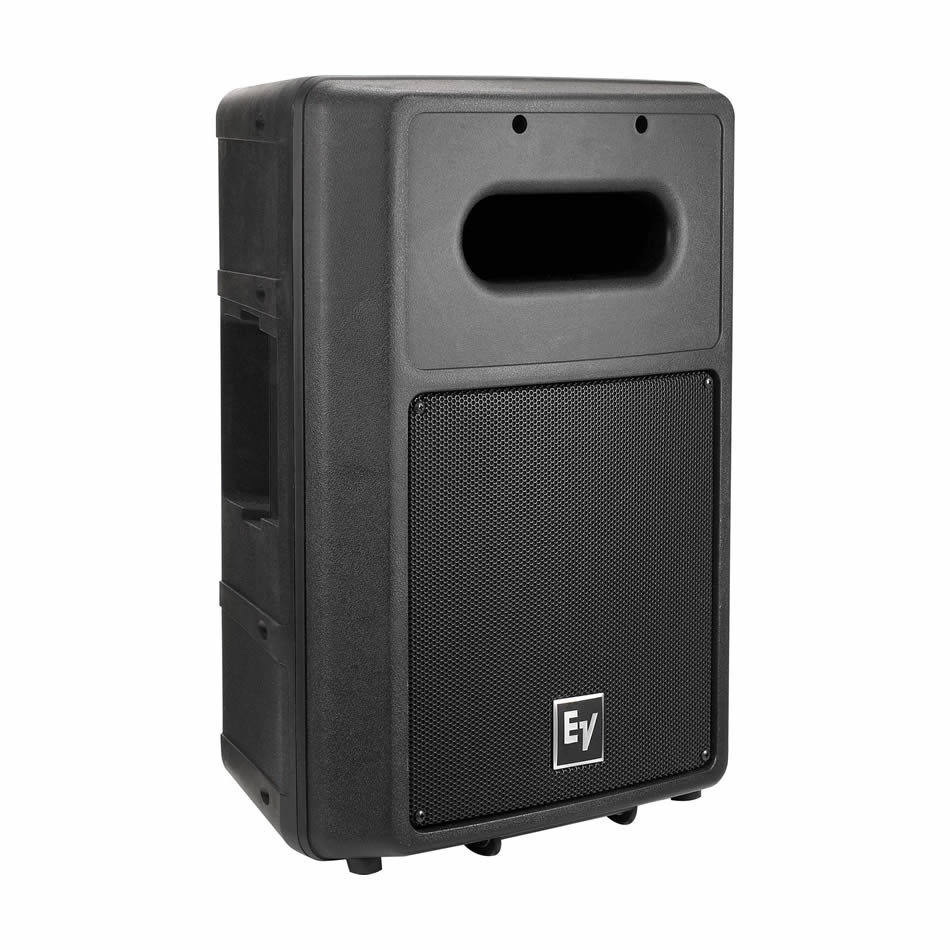

The EV SB122 proves that low end doesn’t need a big footprint. Built around EV’s cast-frame EVS12SB long-excursion 12-inch woofer, this passive sub handles 400 watts continuous (1600W peak) while tipping the scales at just 33 lb — light enough for one-person load-in, punchy enough for real dance-floor duty.
A large vent boosts LF output and extension, while the internal low-pass filter lets you daisy-chain multiple units in parallel without burning an extra amp channel. Dual Neutrik Speakon connectors keep stage wiring tidy and road-ready, and the trapezoidal composite enclosure resists knocks between gigs. A top-mounted pole cup lets you stack a Zx1 (or similar top box) directly overhead, so mobile DJs and small-format PA operators can build a scalable rig without extra hardware.
- Cast-frame EVS12SB 12-inch long-excursion woofer
- 400W continuous / 1600W peak power handling
- 99 dB sensitivity, 131 dB max calculated SPL (half space)
- Frequency response 43–200 Hz, internal crossover at 160 Hz
- Dual parallel Neutrik Speakon high-current inputs
- 8 ohm nominal impedance (6 ohm minimum)
- Recommended high-pass at 40 Hz, 12 dB/octave
- Weather-resistant, black composite trapezoidal enclosure with integral handle
- Top pole mount for pairing with a matching top cabinet; optional flying hardware
Whether it’s anchoring a mobile DJ setup or filling in low end for a small club PA, the SB122 delivers serious punch without demanding a serious footprint.
