Description

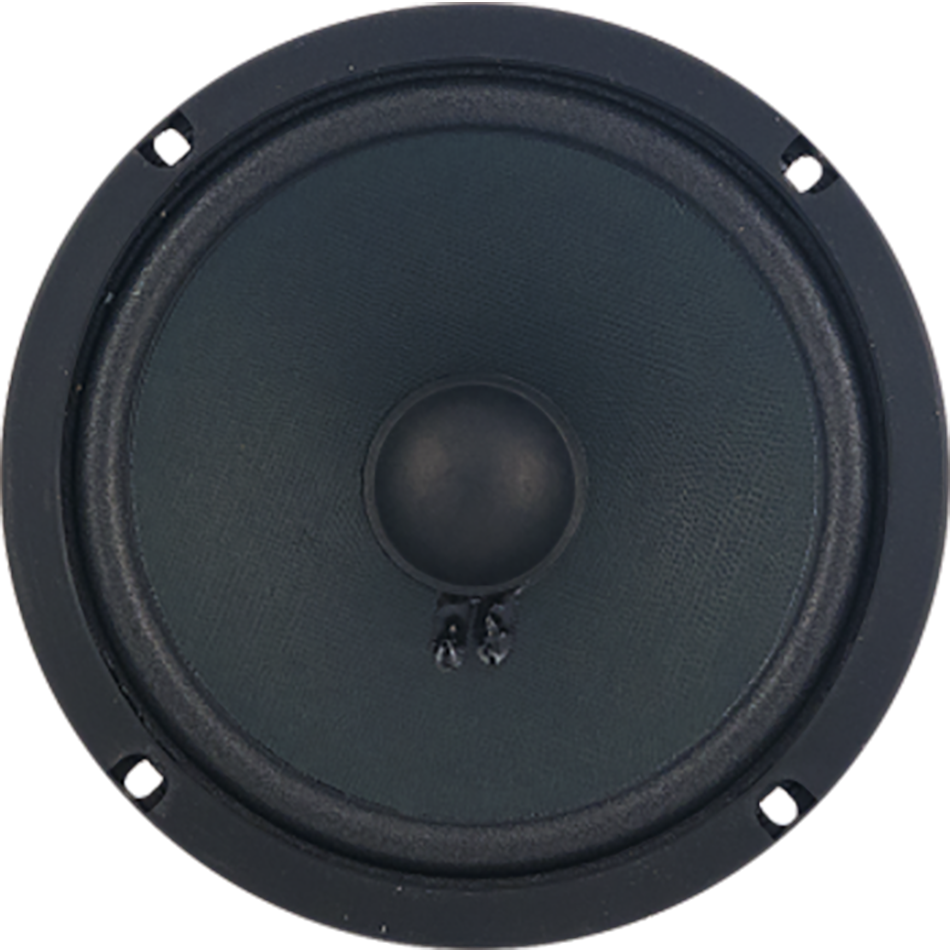

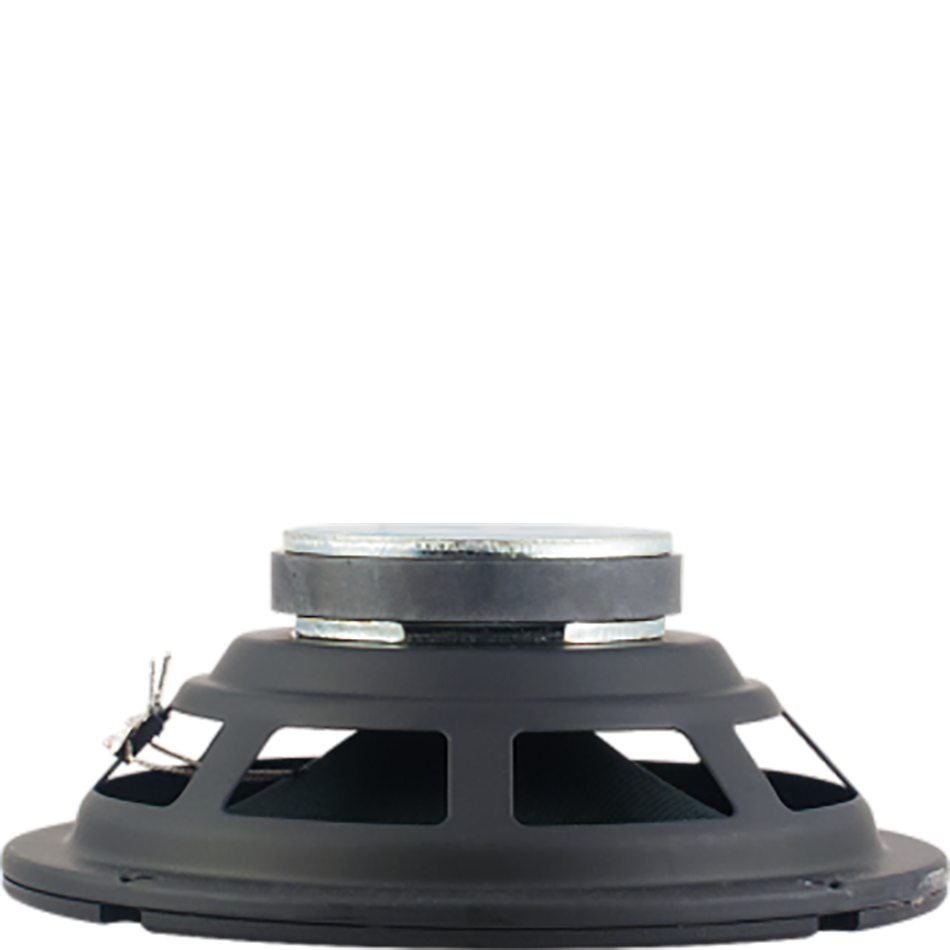

When a practice amp’s stock speaker starts to sound tired, the Jensen MOD6 offers a straightforward, budget-friendly fix. This 6-inch driver is rated to handle 15 watts at 8 ohms, making it a natural swap-in for small combo amps that need a bit more clarity and punch without a full rig overhaul.
- Diameter: 165 mm (6 in.)
- Voice coil diameter: 20 mm (0.75 in.)
- Power handling: 15W
- Impedance: 8Ω
- Magnet weight: 160 g (5.60 oz)
- Overall weight: 1.30 lbs
- Flux density: 1.10 T
- Voice coil DC resistance (Re): 6.64Ω
- Resonance frequency (Fs): 89.9 Hz
- Mechanical Q factor (Qms): 8.44
- Electrical Q factor (Qes): 1.44
- Total Q factor (Qts): 1.23
- Mechanical moving mass (Mms): 6.7 g
- Mechanical compliance (Cms): 465 µm/N
- Force factor (BxL): 4.19 Wb/m
- Equivalent acoustic volume (Vas): 9.9 lt.
- Maximum linear displacement (Xmax): ±0.50 mm
For techs and gigging musicians who keep spares on hand, the MOD6’s small footprint and light overall weight make it easy to stock as a bench part or tuck into a gig bag for emergency swaps. It’s not designed to chase SPL numbers or fill a room on its own — think of it as a dependable, close-quarters voice for practice rigs, monitor wedges, or small cabs where a single 6-inch cone needs to do honest work at modest power.
If you’re building out a scalable small-venue rig or just keeping a stocking-stuffer-sized fix ready for the next dead speaker emergency, the Jensen MOD6 covers that niche reliably.
