Description

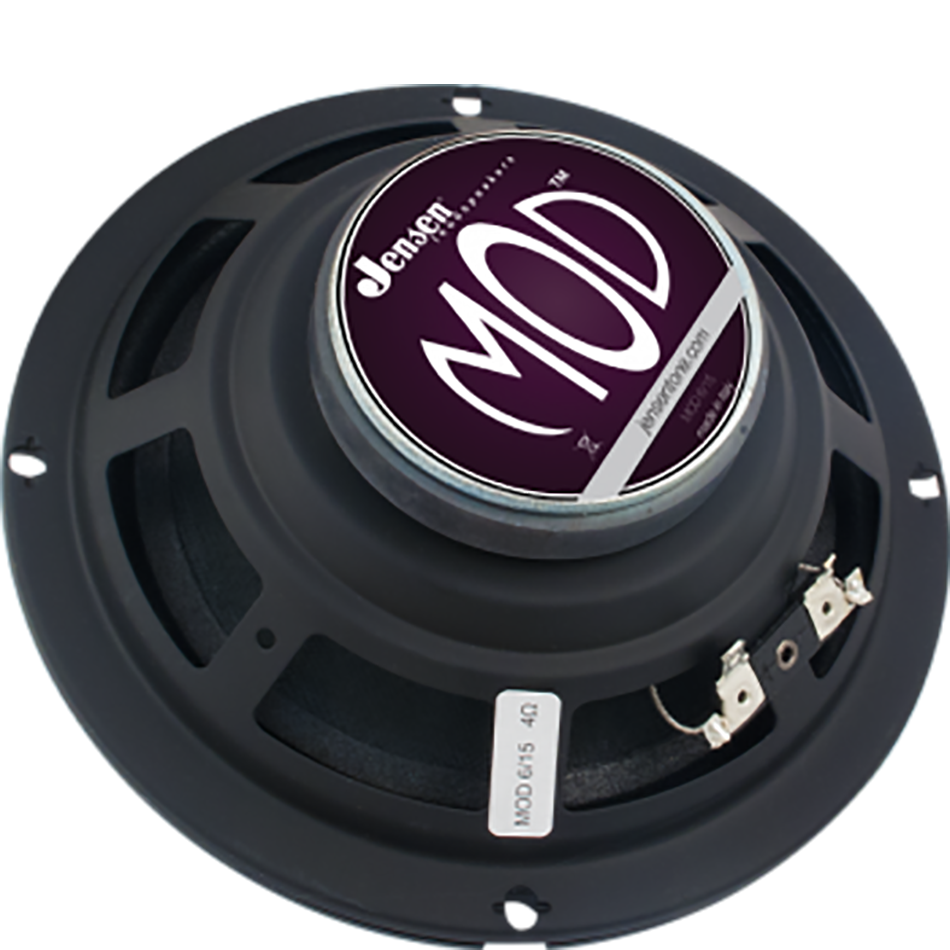

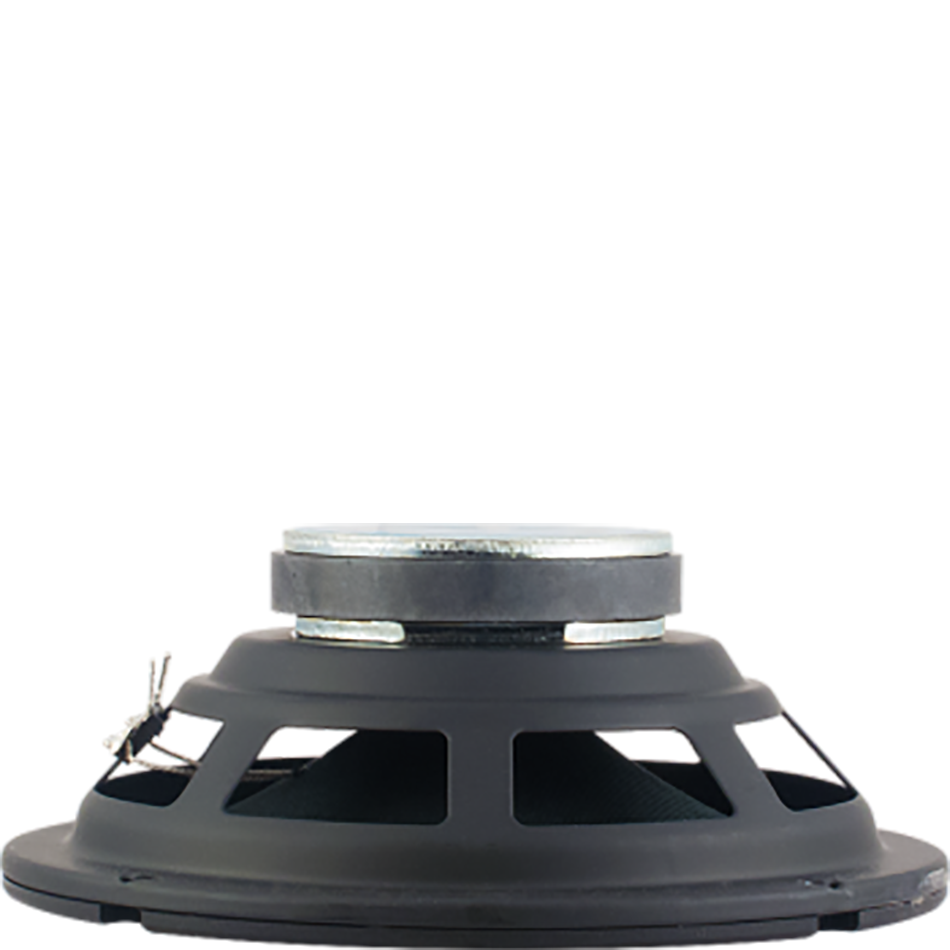

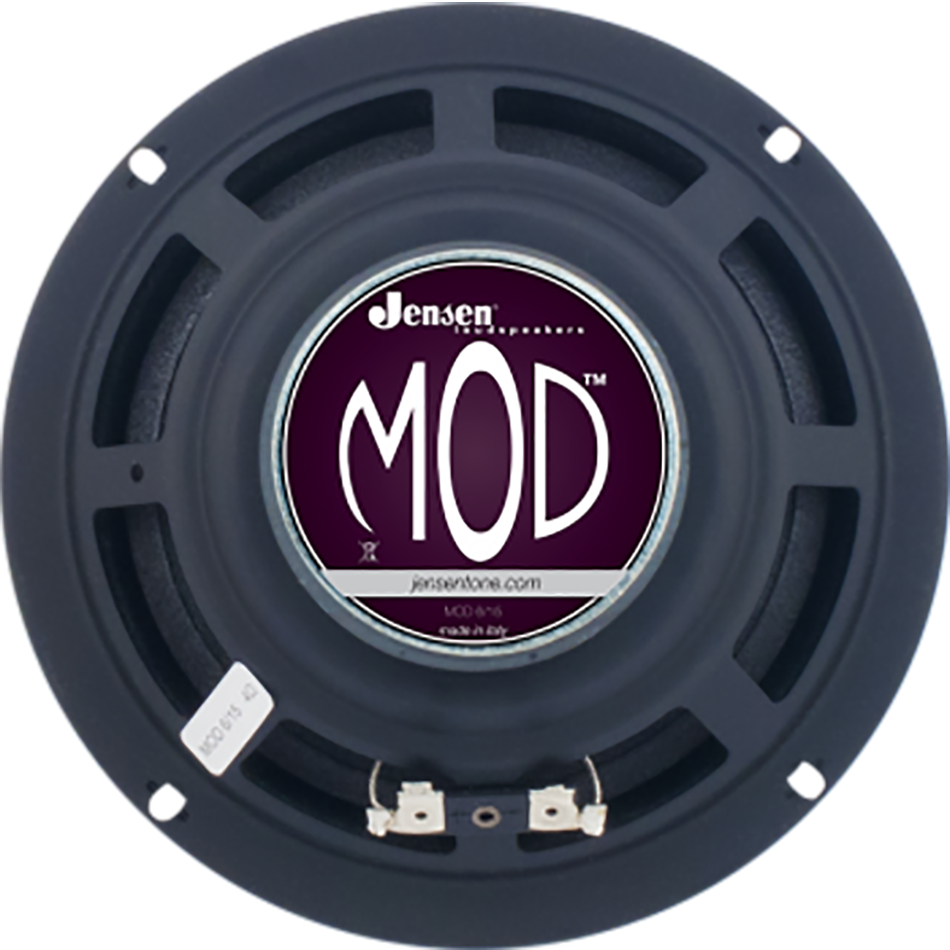

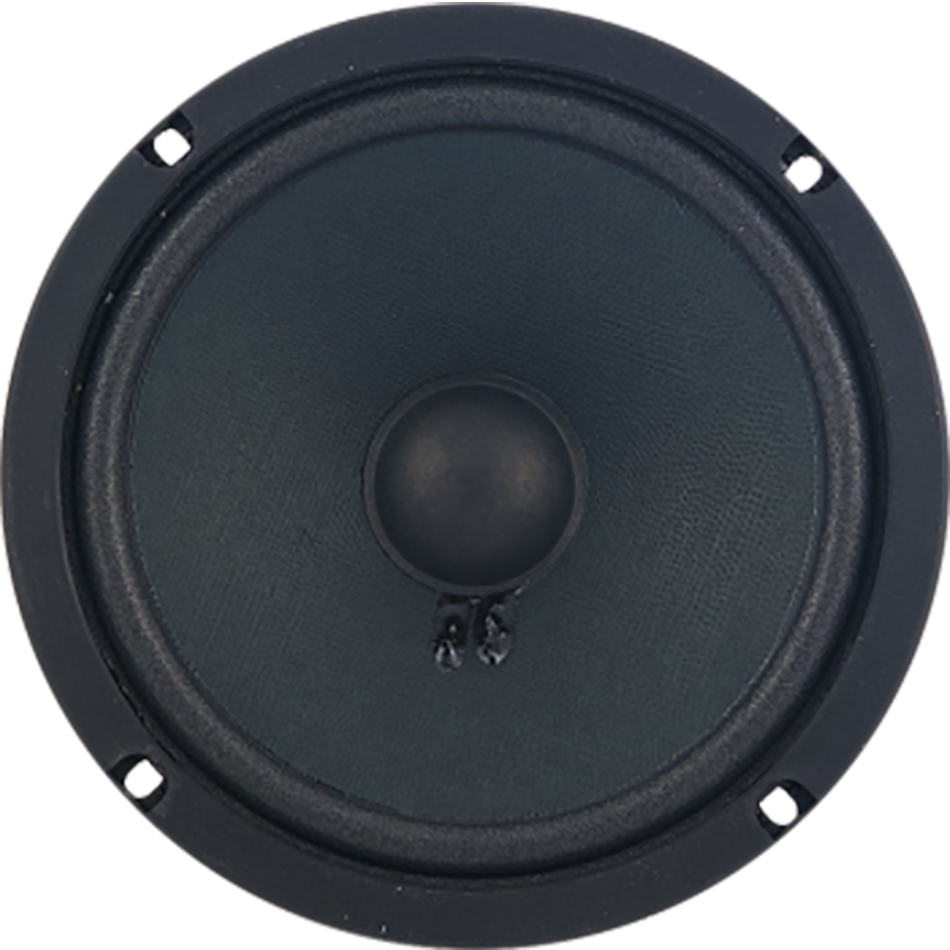

Give an undersized practice amp or worn-out combo a genuine tone refresh with the Jensen MOD6-15, a 6-inch, 4-ohm driver rated for 15 watts. It’s a straightforward swap for players who love the character of their small amp but want more clarity, punch, or reliability out of the stock speaker.
Jensen builds these with a 20mm voice coil and a 160g magnet, keeping the driver light (1.30 lbs overall) while still delivering the flux density needed for a lively, responsive attack. For techs and DIY builders who work from Thiele-Small data, the specs below make cabinet matching and enclosure tuning straightforward.
- Diameter: 6 in. (165 mm)
- Power handling: 15W
- Impedance: 4Ω
- Voice coil diameter: 0.75 in. (20 mm)
- Magnet weight: 5.60 oz (160 g)
- Overall weight: 1.30 lbs
- Flux density: 1.10 T
- Resonance frequency (Fs): 91.0 Hz
- DC resistance (Re): 3.00 Ω
- Qms: 8.06 / Qes: 1.39 / Qts: 1.19
- Moving mass (Mms): 5.5 g
- Compliance (Cms): 552 µm/N
- Force factor (BxL): 2.68 Wb/m
- Equivalent volume (Vas): 11.7 liters
- Max linear excursion (Xmax): ±0.50 mm
Whether you’re refreshing a small practice combo, prepping backline gear, or restocking spare drivers for a busy shop, this MOD6-15 is a dependable, budget-friendly building block. Its compact footprint also makes it a smart stocking-stuffer pick for the gearhead on your list who’s always tinkering with cabs.
