Description

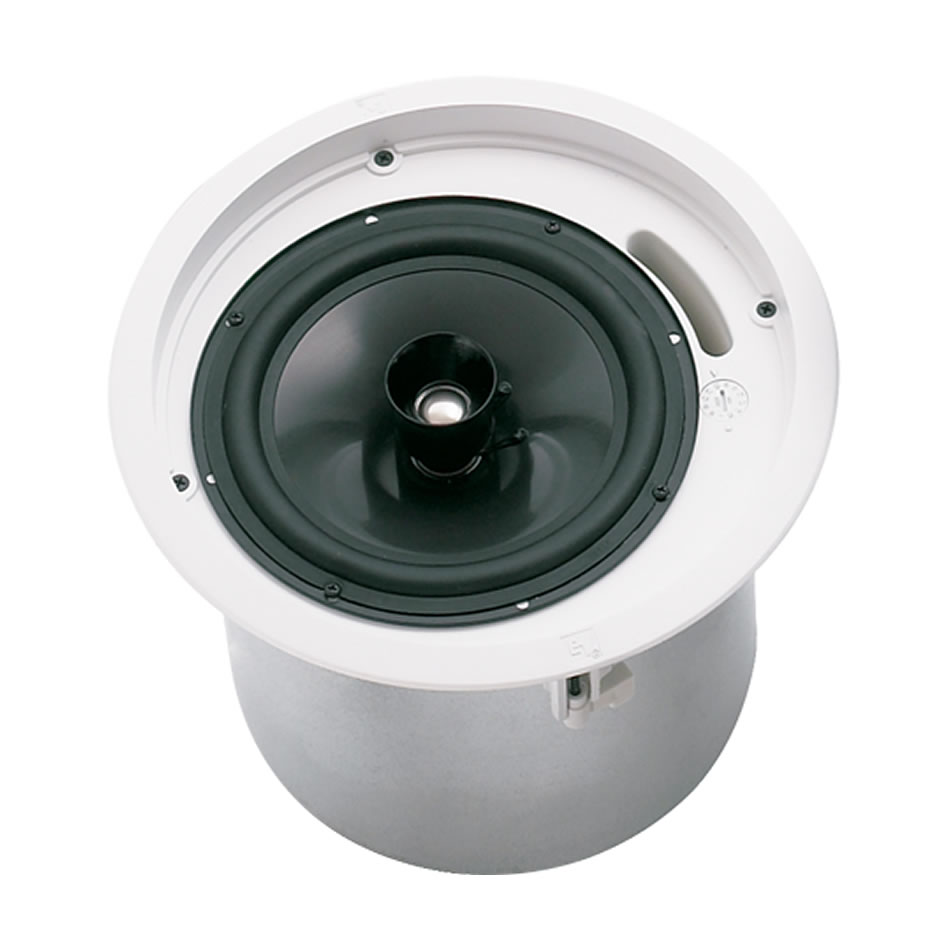

The EVID-C8.2LP brings Electro-Voice’s coaxial design into a shallower footprint, trimming 3 inches of back-can depth so it drops into tight plenum spaces without sacrificing output quality. It’s built for the everyday demands of commercial sound, life-safety paging, and house-of-worship installs where flush-mount aesthetics matter just as much as intelligibility.
- 8″ woofer paired with a 1″ waveguide-coupled tweeter, extending usable coverage up to 18 kHz for consistent tonal balance across the listening area
- Specially tuned enclosure supports even dispersion, helpful for keeping speech and paging content clear from wall to wall
- Four-point mounting system with included support ring and tile rails — no extra hardware needed for most standard ceiling installs
- 70V transformer onboard with 1.88, 3.75, 7.5, 15, and 30-watt taps, giving system designers flexibility when scaling a multi-zone or distributed audio rig
- Sensitivity rated at 91 dB (1W/1m), frequency response of 50–20,000 Hz (-10 dB)
Physically, the chassis measures 8″ with a max grille diameter of 10.63″, a height of 7.01″, and a net weight of 11.02 lbs — light enough for straightforward overhead mounting. This is an indoor-rated speaker, not intended for outdoor exposure. For integrators who need rider-friendly, low-visibility coverage across lobbies, worship spaces, or paging zones, the EVID-C8.2LP offers a compact, dependable building block for larger distributed systems.
