Description

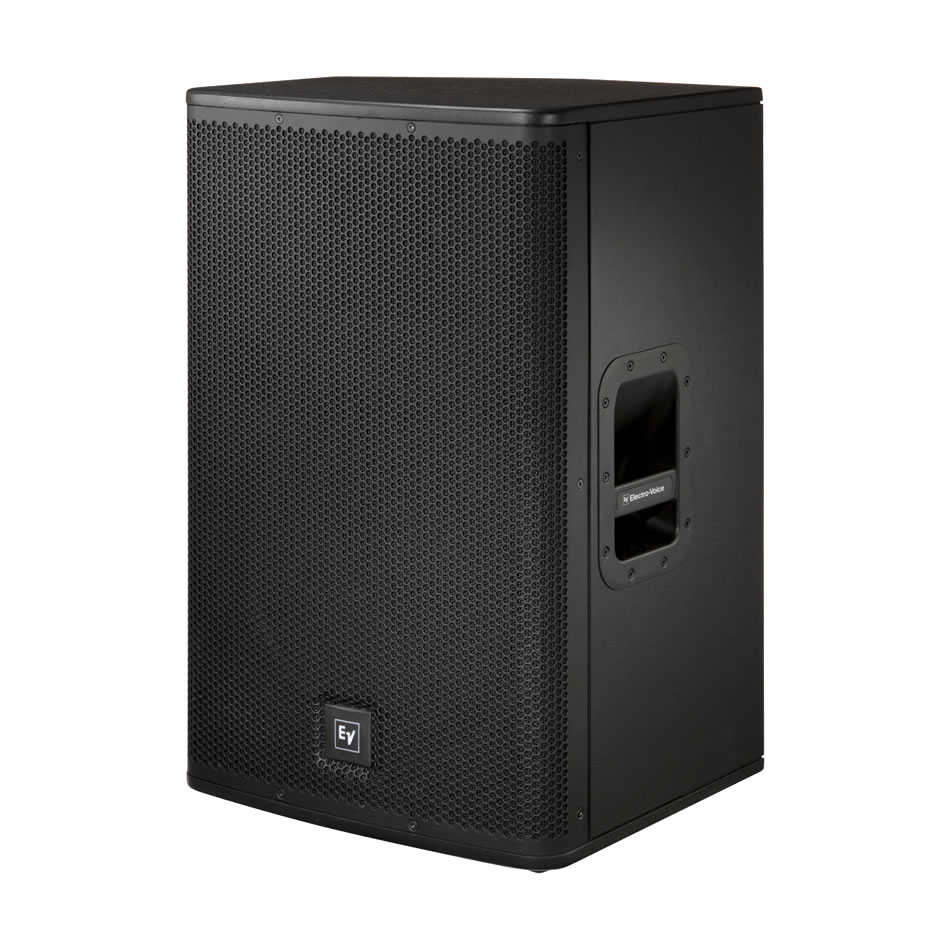

The Electro-Voice ELX115 earns its place in the Live X lineup by pairing genuine EV horn-loaded engineering with a build light enough to load in fast and stack up front-of-house without a second thought. Inside a 9-ply, 15mm plywood cabinet with internal bracing, the EVS-15K 15″ woofer teams with a 1.5″ DH-1K titanium compression driver to deliver a wide, even 90° x 50° coverage pattern – the kind of spread that keeps corners of the room from getting shortchanged.
With a calculated max SPL of 134 dB and 400W continuous / 1600W peak handling, this cabinet has the headroom for rock, corporate AV, or DJ rigs that need to stay clean at volume rather than crunch under pressure. A -3 dB frequency response stretching from 5 Hz to 18 kHz (usable range 50 Hz – 20 kHz at -10 dB) gives mix engineers a full-bodied tonal palette to work with, and the internal crossover set at 17 kHz keeps the transition between woofer and compression driver seamless.
Riders that call for flexible deployment will appreciate the 60° monitor angle for wedge use on stage, plus pole-mounting or stacking compatibility with Live X subwoofers for a scalable main PA. Signal comes in via parallel Neutrik NL4 connectors, and an 18GA steel grille with black powdercoat finish protects the drivers through repeated load-outs.
- EVS-15K 15″ woofer + 1.5″ DH-1K titanium HF compression driver
- 90° x 50° coverage waveguide, 60° monitor angle for stage wedge use
- 134 dB max SPL, 400W continuous / 1600W peak handling
- 8Ω nominal / 7.4Ω minimum impedance, 40 Hz recommended high-pass
- Braced 15mm plywood enclosure with black textured finish
- Pole-mountable or stackable with Live X subwoofers
- Net weight: 21.9 kg (48.28 lbs)
