Description
The ELX200-12P pairs a 12-inch EVS-12M woofer with a DH-1C 1-inch titanium compression driver, driven by a 1200W Class-D amp that tops out at 130 dB peak SPL. That’s enough headroom for a solid front-of-house box or a hardworking monitor wedge, and EV’s patented SST waveguide keeps the 90° x 60° coverage pattern even and predictable across the room, so your mix stays consistent from the front rows to the back wall.

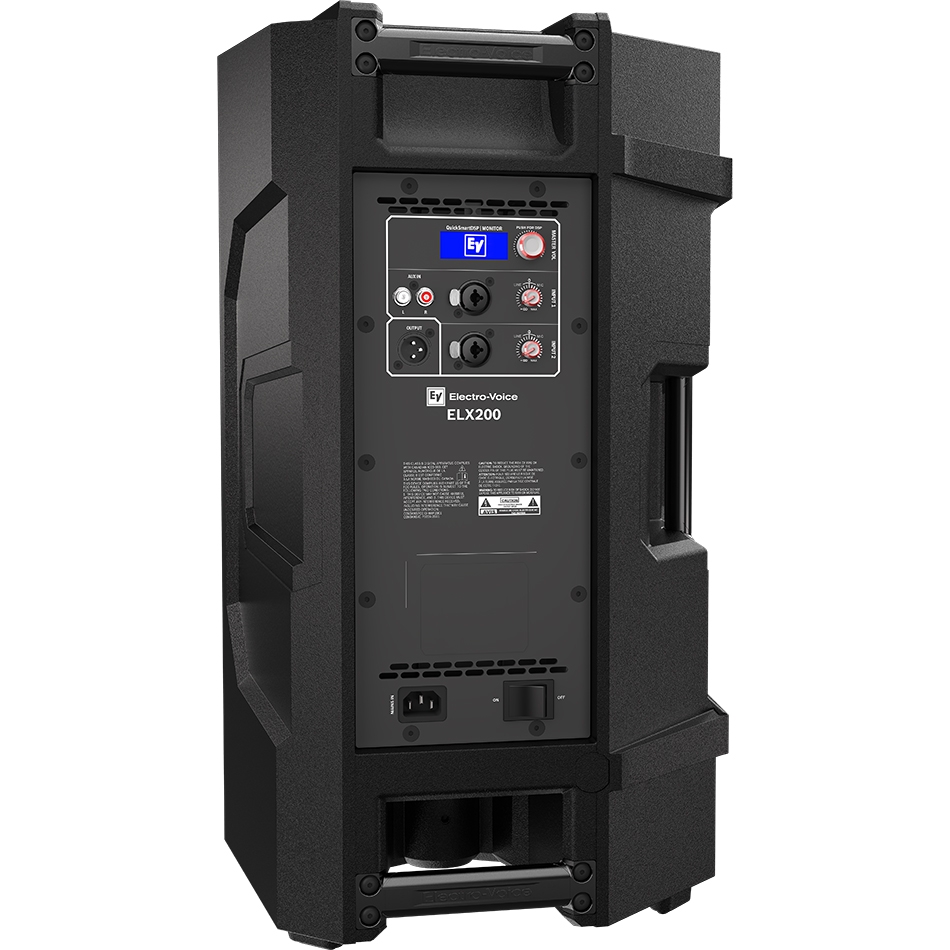

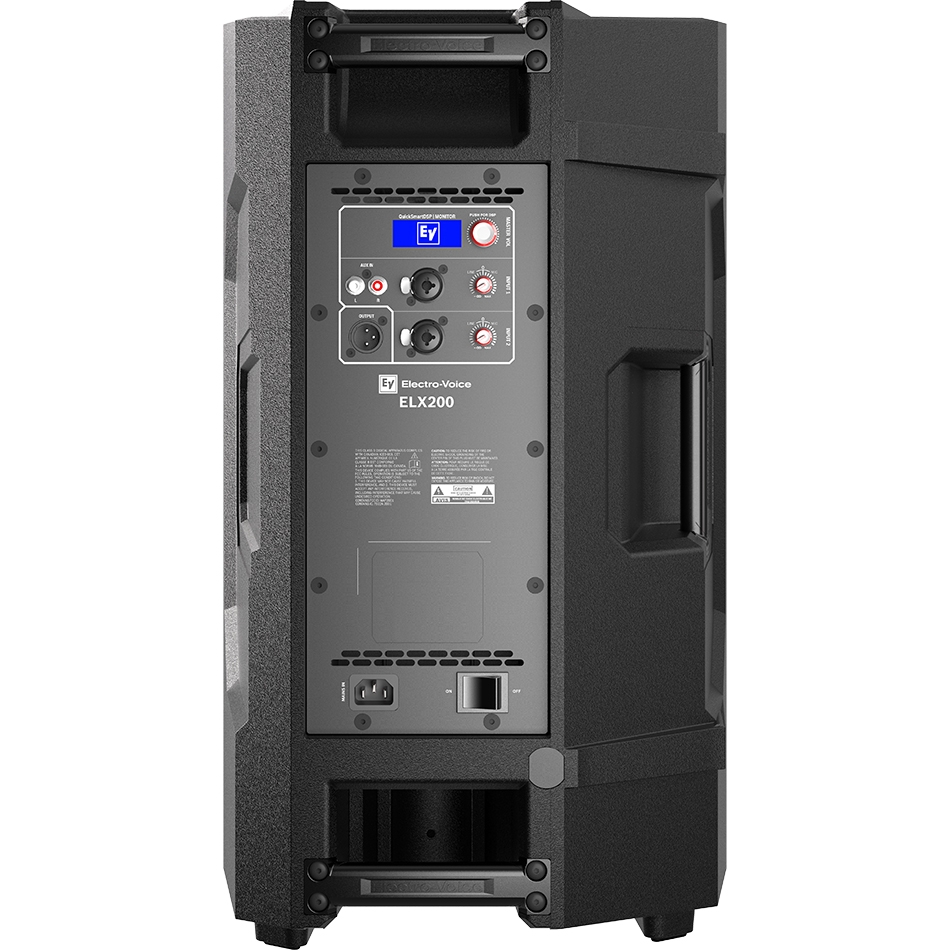

Onboard QuickSmartDSP puts real control at your fingertips via LCD: four instant presets (Music, Live, Speech, Club), sub/top system-match crossovers, a three-band EQ, five user-programmable memory slots, limiter status monitoring, input metering, and master volume — all the tools needed to dial in gain structure fast without outboard processing. Pair it with EV’s QuickSmart Mobile app over Bluetooth and you can wirelessly configure, monitor, and get overdrive alerts on up to six ELX200 boxes at once, standing in front of the PA where you can actually hear it.

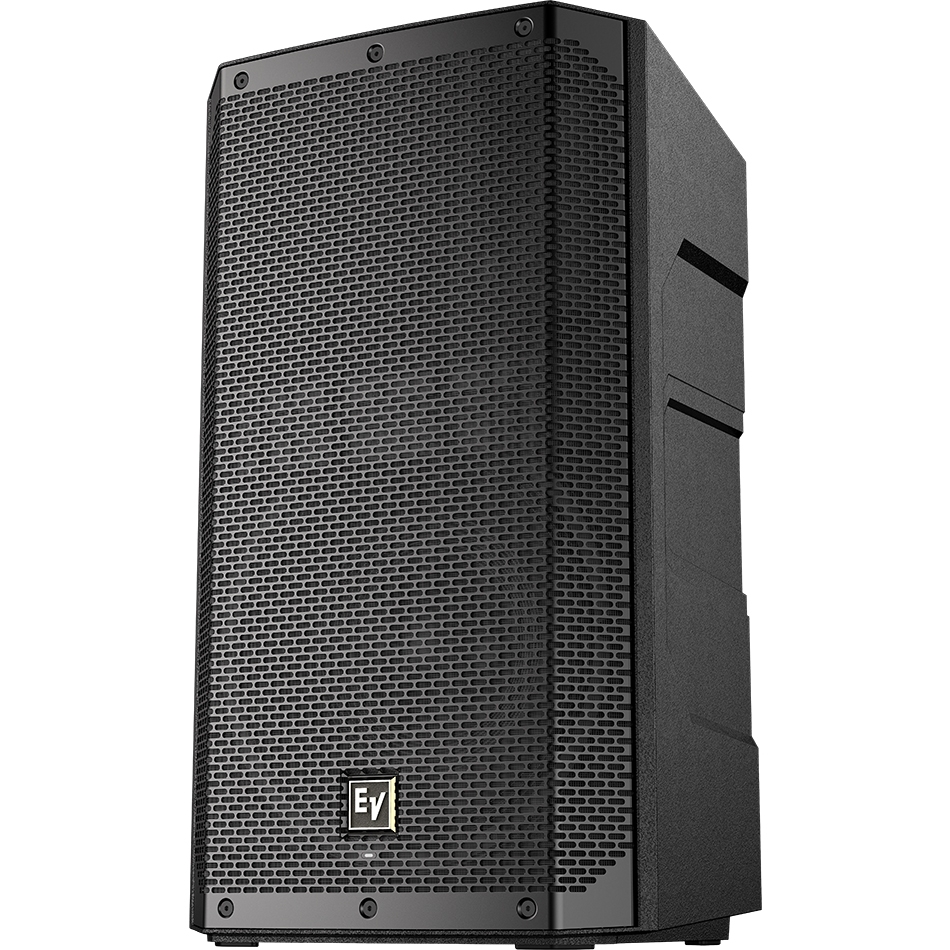

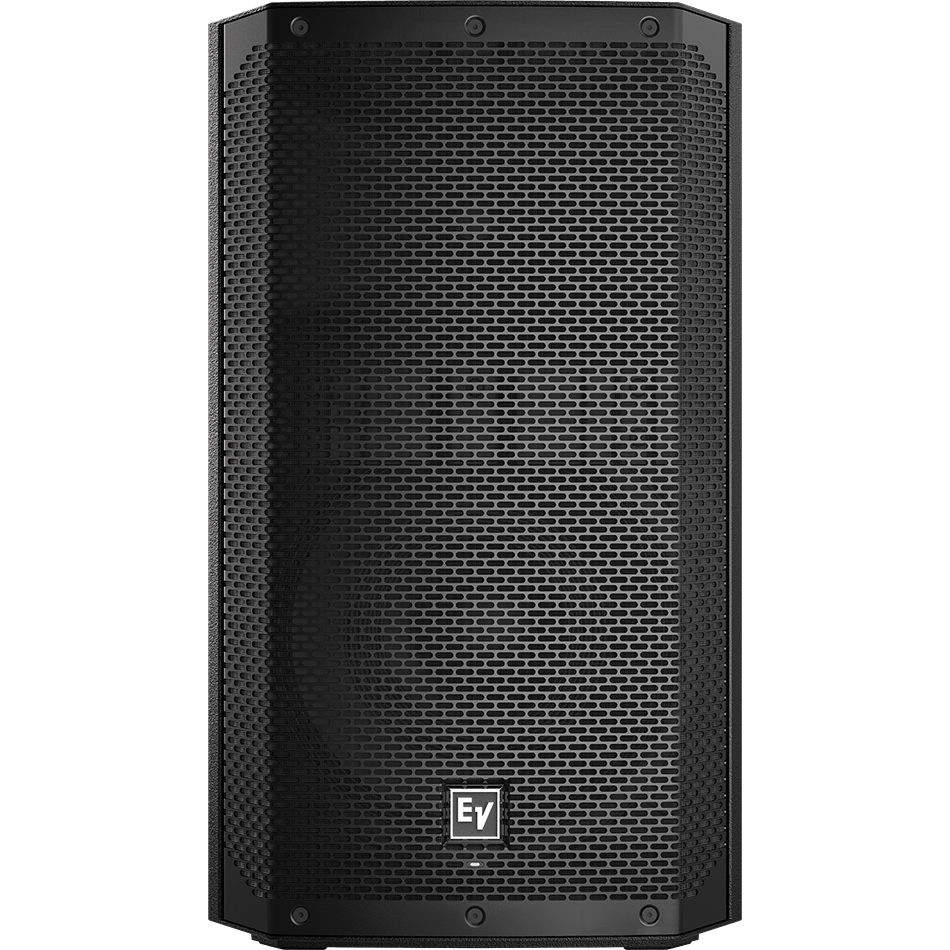

Built from durable polypropylene composite with a steel powdercoat grille, the cabinet carries three M10 mounting points for rigging, an integrated pole mount, and the familiar ZLX three-handle layout for one-person load-in. Whether you’re stacking it as a scalable small-venue system or adding it to an existing rig for extra coverage, it’s a rider-friendly workhorse.
This unit is sold as Open Box – Mint condition: fully functional, cosmetically excellent, offered at a reduced price versus new.
- 1200W Class-D amp, up to 130 dB peak SPL
- 12″ EVS-12M woofer + DH-1C titanium compression driver
- 90° x 60° coverage via EV SST waveguide
- QuickSmartDSP: 4 presets, 3-band EQ, 5 user presets, limiter/level metering
- Bluetooth QuickSmart Mobile app control for up to 6 units
- 3x M10 mounting points, integrated pole mount, ZLX 3-handle design
- Frequency response (-3dB): 57 Hz – 16 kHz
