Description

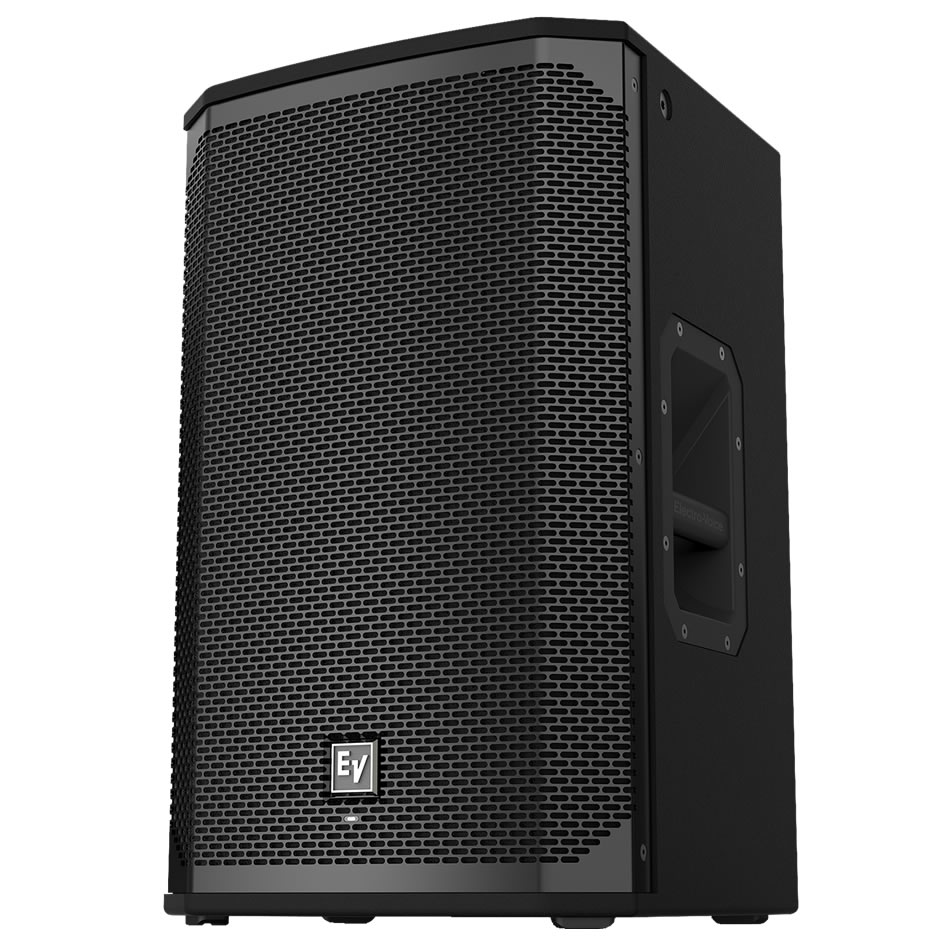

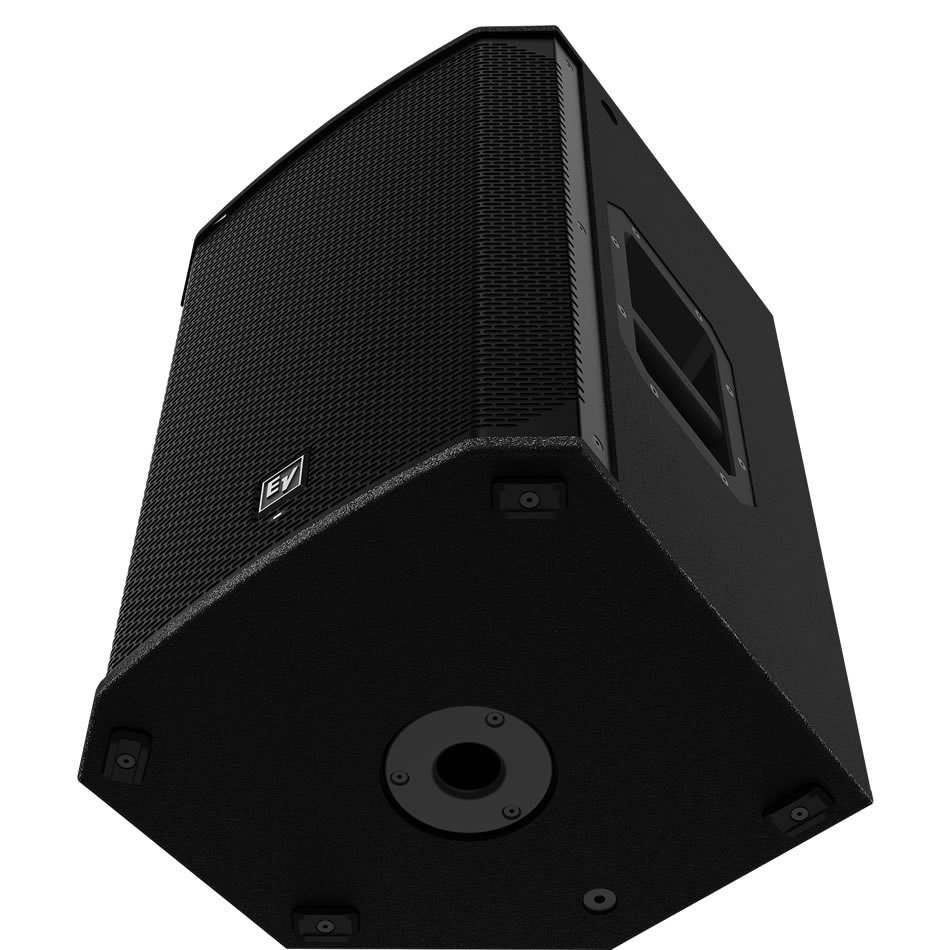

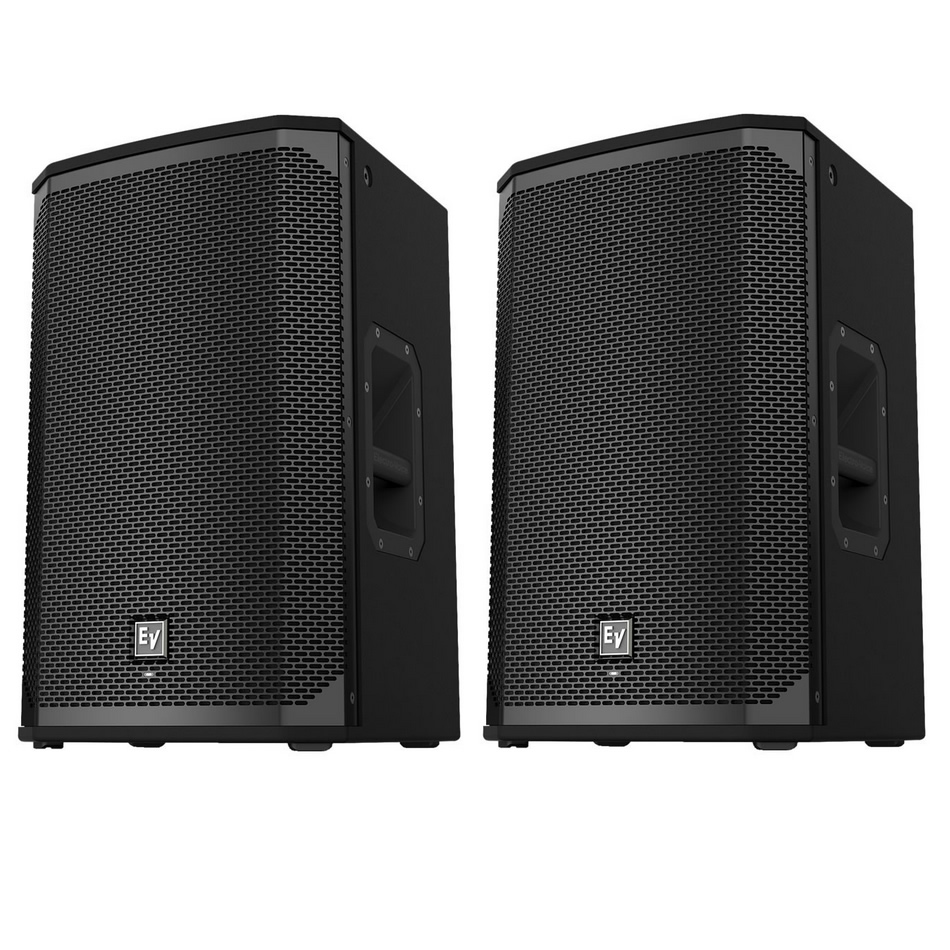

When your rig needs to cover a mid-size room or stage without breaking the truck pack, the EKX-12 gives you EV’s core sound engineering in a passive, amp-friendly package. This listing is for a matched pair, ready to go on poles, on stands, or flown from the eight M10 points on each cabinet.
- 350W continuous / 1400W peak handling per box, with 131 dB max SPL for real headroom on louder stages and clubs
- 95 dB sensitivity (1W @ 1m) means less amp power needed to hit working levels
- EV’s patented Signal Synchronized Transducers (SST) waveguide keeps the 90° x 60° pattern tight and even across the room, so front rows and back rows get a consistent mix
- 12-inch EVS-12M woofer paired with a 1-inch DH-1M titanium compression driver, crossing over at 1.6 kHz for a smooth handoff between lows and highs
- 82 Hz – 18 kHz usable frequency range (-3 dB), with a recommended 55 Hz high-pass point for subwoofer integration
- 8Ω nominal impedance, dual NL4 connectors for flexible amp wiring

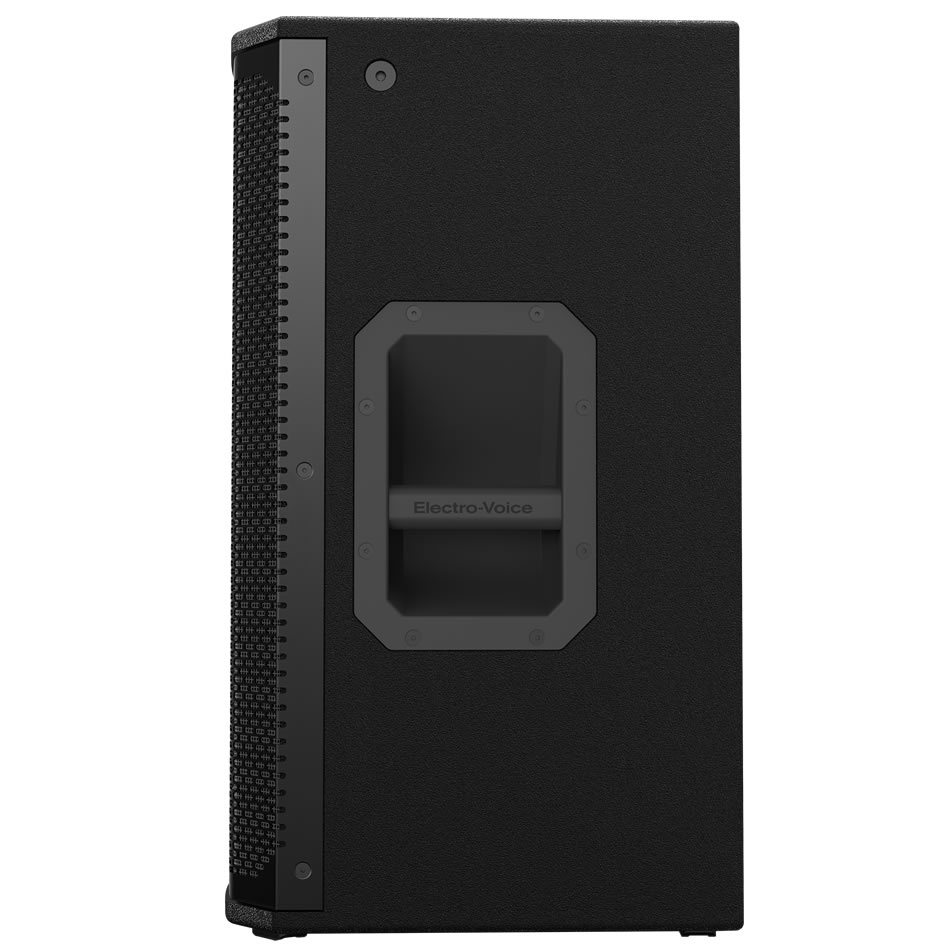

Build quality follows EV’s usual playbook: 15mm braced plywood enclosures finished in durable EVCoat, an 18 AWG steel powdercoated grille, all-metal handles, and aluminum pole mounts. A 40° monitor angle with rubber feet also lets each cabinet double as a wedge when laid on its side. At roughly 17.4 kg (38.4 lbs) each, they’re light enough for one-person load-in but solid enough for regular touring use.
Whether you’re running duo/trio setups, DJ rigs, or a small-venue main system, this pair gives you rider-friendly output and EV reliability without stepping up to a bigger, heavier box.
