Description

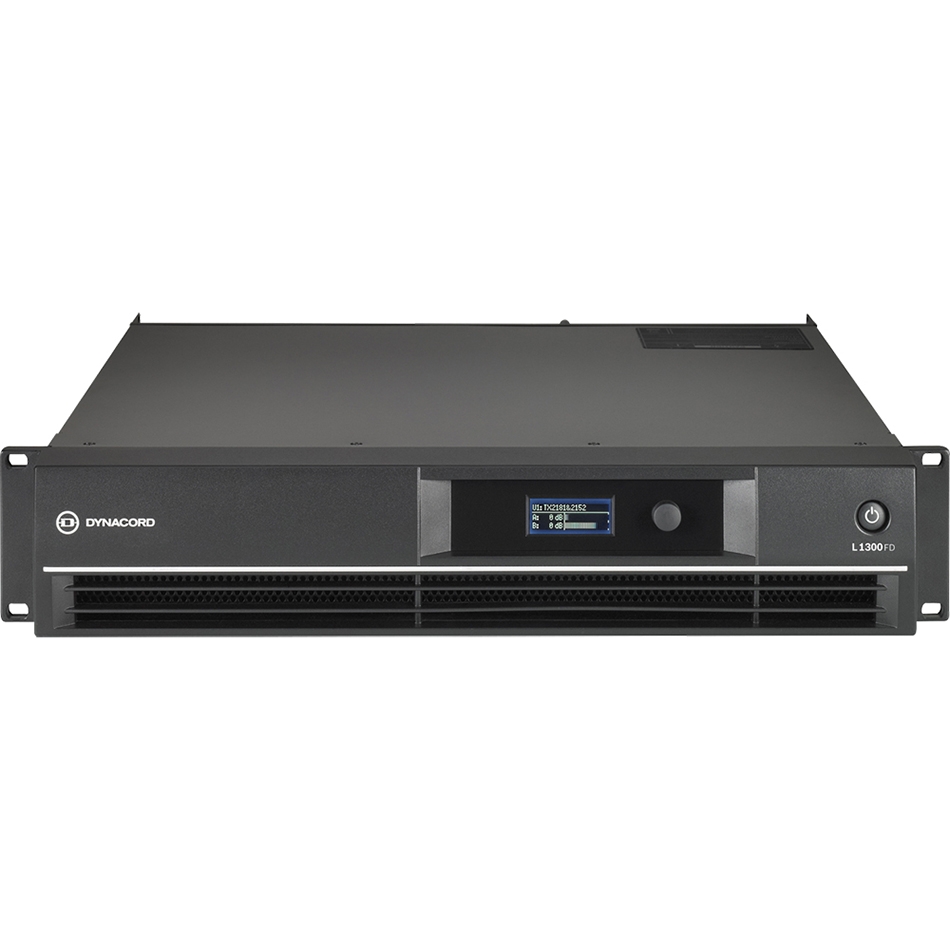

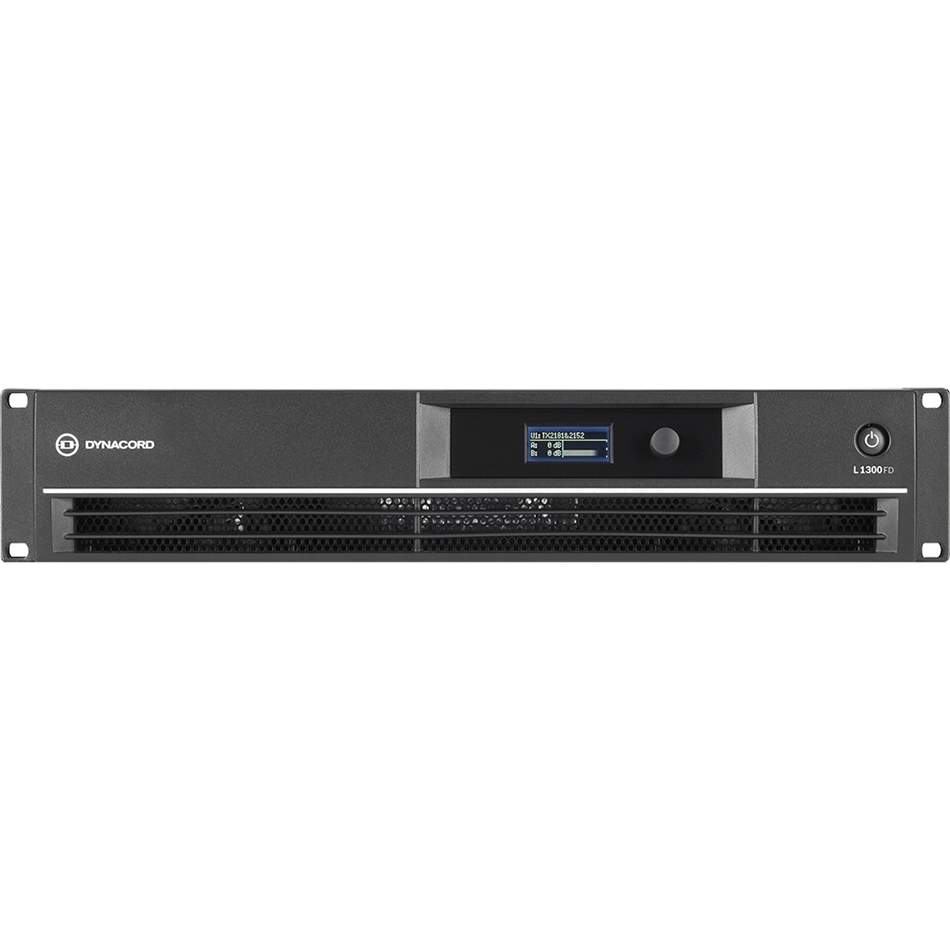

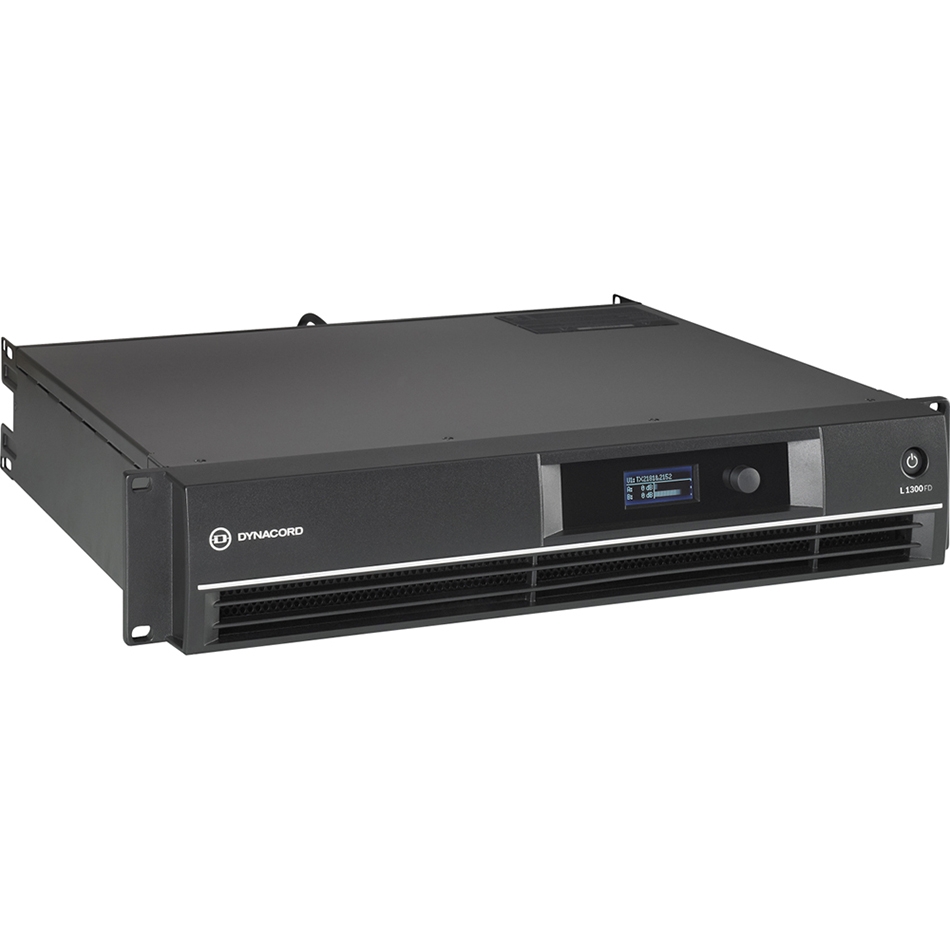

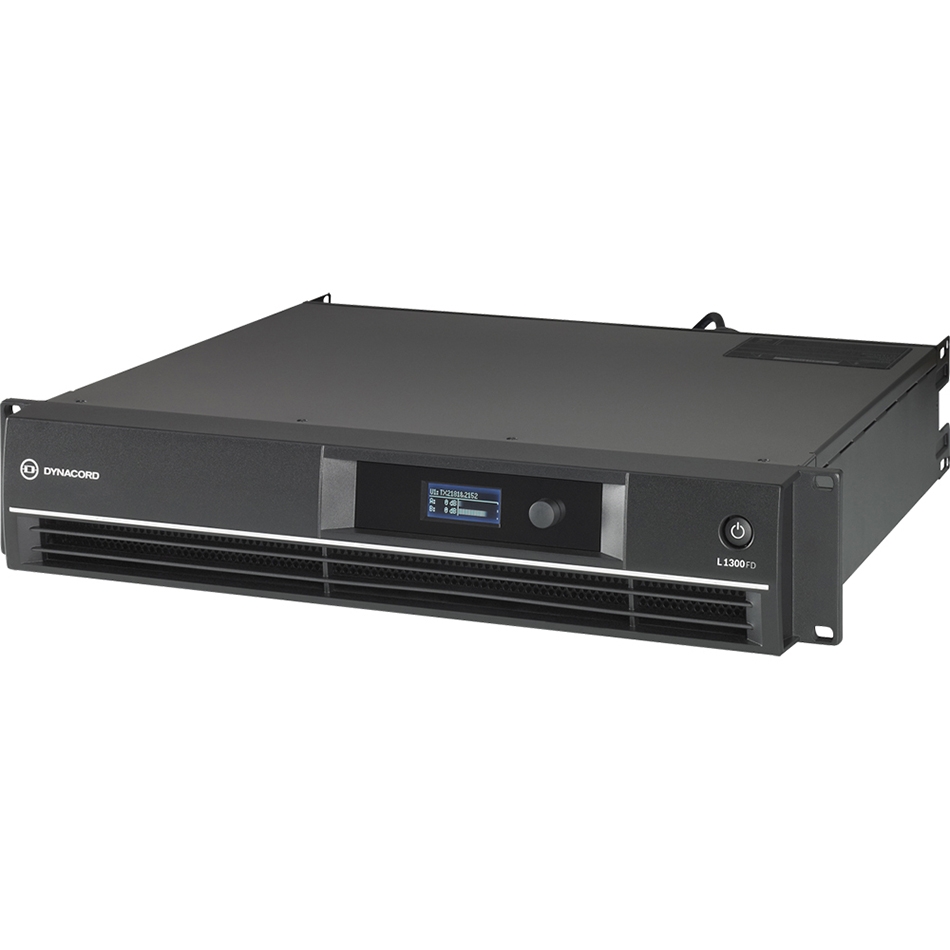

The Dynacord L1300FD puts full-blown speaker processing right inside the amp chassis, so your rig can run tighter, louder, and cleaner without extra rack space. Built around FIR Drive technology, it’s engineered to squeeze market-leading acoustic performance out of every box in your PA, while holding up show after show thanks to its rugged, road-tested design.
True 2Ω stability means you can bridge or parallel loudspeakers with confidence, even when a rider calls for dense sub arrays or multiple cabinets per channel. Onboard, you get FIR filters, audio limiters, per-channel output delay, 31-band GEQ, PEQ, and load impedance monitoring — giving system techs the tools to fine-tune coverage and protect drivers without a laptop tethered to the rack. When a laptop is handy, Dynacord’s intuitive control software makes setup, tuning, and monitoring straightforward for both installed systems and one-off gigs.
Key specs:
- Max output, single channel: 1100W @2Ω, 950W @2.6Ω, 660W @4Ω, 350W @8Ω
- Max output, dual channel: 1000W @2Ω, 850W @2.6Ω, 600W @4Ω, 320W @8Ω
- Bridged output: 2000W @4Ω, 1200W @8Ω
- Class AB output stage with front-to-rear, 3-stage fan cooling
- Signal-to-noise ratio: >104dB (A-weighted)
- Frequency response: 10Hz–21kHz (±1dB)
- Comprehensive protection: audio limiters, thermal, DC, HF, back-EMF, peak/inrush current, turn-on delay
- 1U chassis: 19.02″ W x 3.46″ H x 18.2″ D, 28.44 lbs
Whether it’s front-of-house for a touring production or a fixed install that needs to just work night after night, the L1300FD scales cleanly across coverage zones and keeps the acoustic side of the rig under tight, predictable control.
