Description

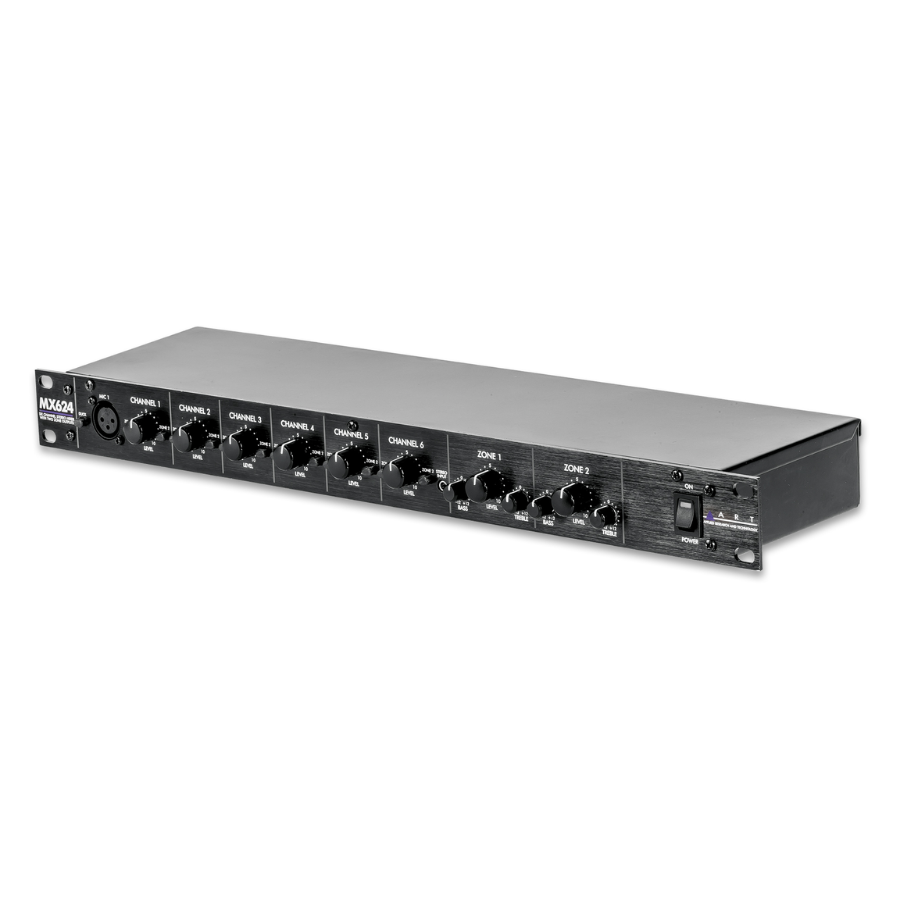

When a job calls for background music in one room and page-priority announcements in another, the ART MX624 handles both from a single rack space. Six stereo input channels each get independent level control and can be routed to Zone 1, Zone 2, both, or neither — giving installers real flexibility across conference rooms, boardrooms, churches, restaurants, health clubs, and small venues.

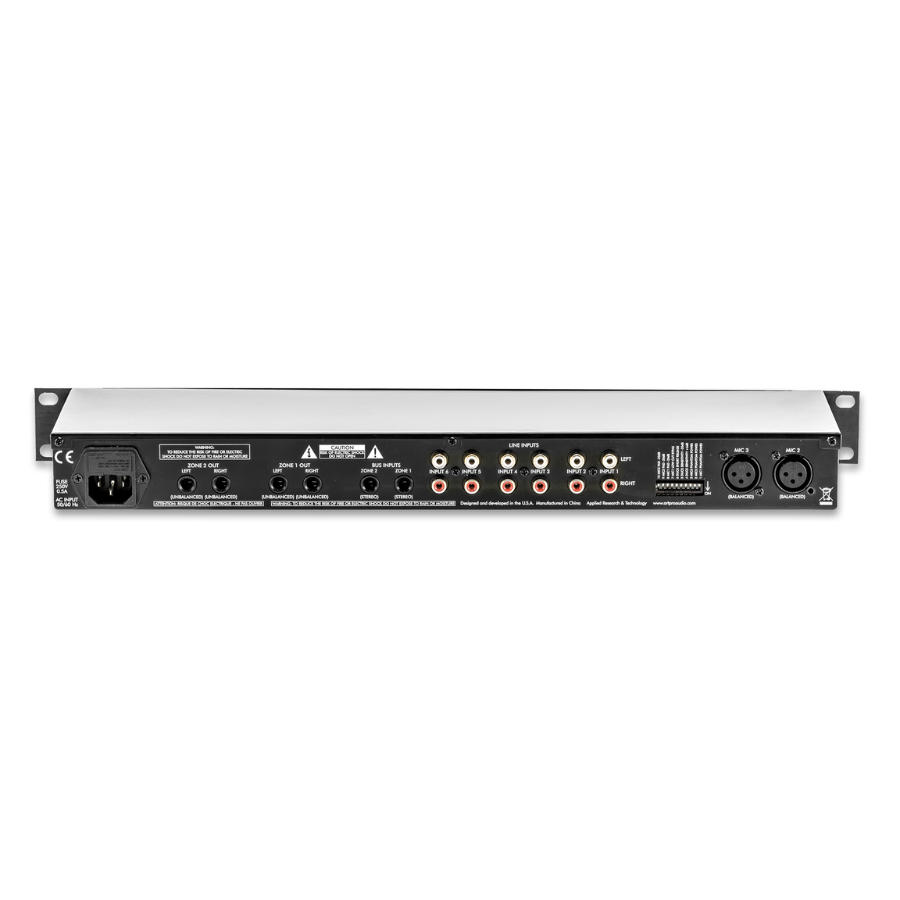

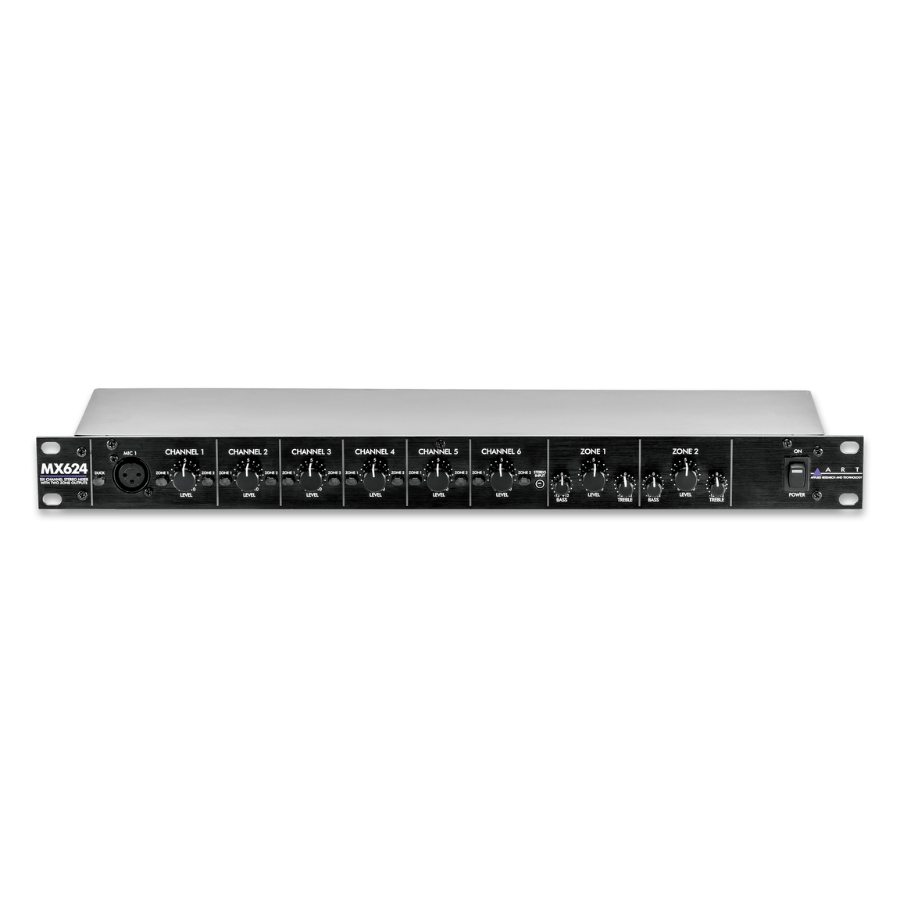

Channels 1-3 include balanced mic XLRs with switchable +48V phantom power (assignable per channel) and selectable padding for hotter sources. All six channels accept unbalanced stereo line-level input via RCA, and a front-panel 1/8-inch TRS jack makes it easy to plug in a portable player for quick background audio. Channel 1 doubles as a paging trigger: flip the front-panel switch and it ducks the other five channels automatically, with ducking depth and threshold parameters adjustable via rear dipswitches — ideal for announcements over ambient music.
Each zone output gets its own master level, bass, and treble controls (+/-12 dB at 100 Hz and 10 kHz), so the two zones can be tuned differently without affecting each other. Need more inputs? Two 1/4-inch TRS bus jacks let you chain additional MX624 units together for larger systems.
- Six stereo input channels, individually leveled and zone-assignable
- Balanced mic XLR inputs with independent +48V phantom on channels 1-3
- Switchable ducking on channel 1 for paging over program audio
- Dual zone outputs with independent level, bass, and treble
- Bus inputs for chaining multiple units
- Rugged 1U steel rack chassis with internal power supply, under 15W draw
Signal-to-noise stays above 90 dB with THD under 0.01%, keeping the MX624 clean and quiet whether it’s running paging duty or all-day background music in a permanent install.
