Description

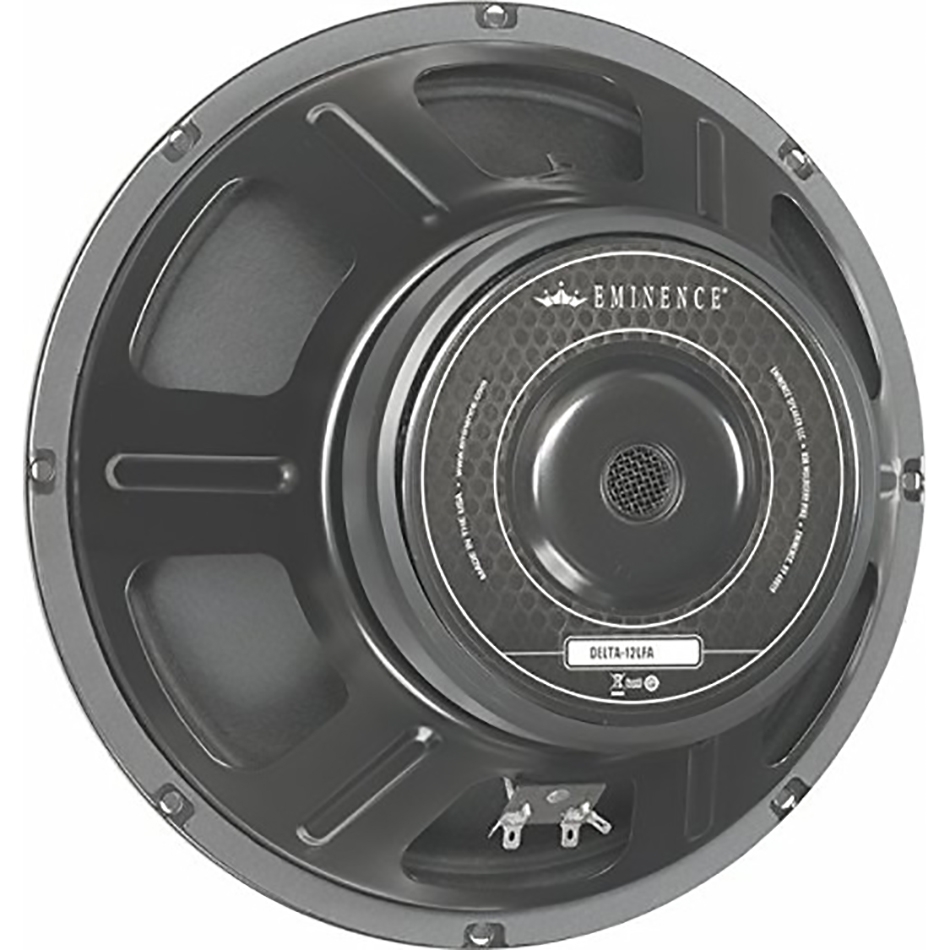

When a stage or install woofer finally gives out, this Eminence 12″ driver gets your enclosure back to full-rated performance without a full cabinet swap. It’s a straightforward retrofit for touring wedges, mains, and fixed-install boxes that need a dependable 12-inch driver rather than a redesign.
- Nominal basket diameter: 12″ (305 mm)
- Nominal impedance: 8 Ω
- Program power: 500 W / continuous: 250 W
- Resonance: 47 Hz
- Usable frequency range: 57 Hz – 4.6 kHz
- Sensitivity: 97.3 dB
- Magnet weight: 38 oz.
- Gap height: 0.312″ (7.9 mm)
- Voice coil diameter: 2″ (51 mm)
With a 97.3 dB sensitivity rating and a usable range stretching from low-mid punch up to 4.6 kHz, this woofer covers a wide swath of program material on its own — useful for two-way boxes or coaxial designs where midrange presence matters as much as low-end push. The 500 W program rating gives you headroom for festival-level SPL demands, while the 8 Ω impedance keeps it compatible with the vast majority of standard PA cabinet wiring.
Note: if you’re pulling this driver for a BETA 8CX, 10CX, or 12CX coaxial cabinet, remember the published figures were measured with the ASD:1001 compression driver mounted but inactive — the tweeter itself is sold separately. Eminence tests all units per EIA-426A/AES methodology in a controlled anechoic-style chamber, so real-world numbers in your specific box may vary slightly with loading and cabinet volume.
Specs and cosmetics are subject to change without notice per manufacturer updates.
